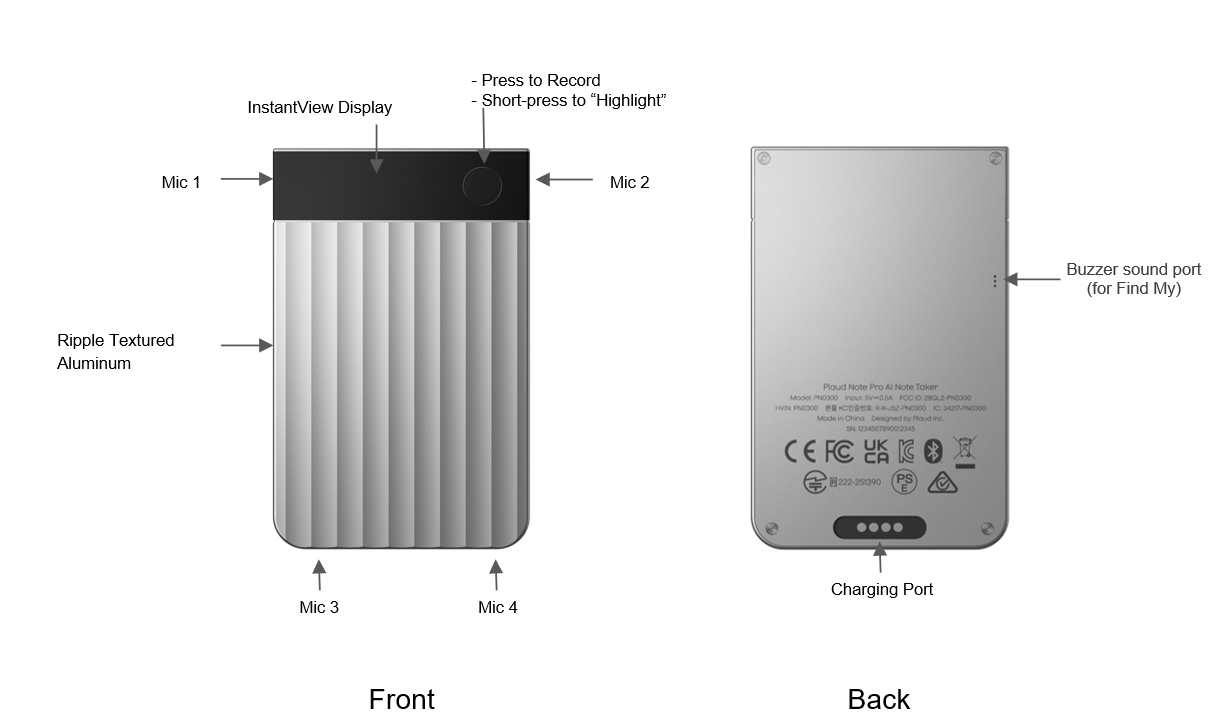

Front
Instant View display
- Located at the top center of the device
- Press to record
- Short-press to highlight
Microphones
- Plaud Note Pro uses a 5-mic array: 4 MEMS microphones plus 1 VPU (Voice Pickup Unit).
- Mic 1: Top left
- Mic 2: Top right
- Mic 3: Bottom left
- Mic 4: Bottom right
Ripple-textured aluminum
- Premium aluminum body with a distinctive ripple texture
Back
Buzzer sound port (for Find My)
- Located at the top right corner
- Enables Apple Find My functionality
Charging port
- Located at the bottom center
- Four-pin magnetic charging interface
